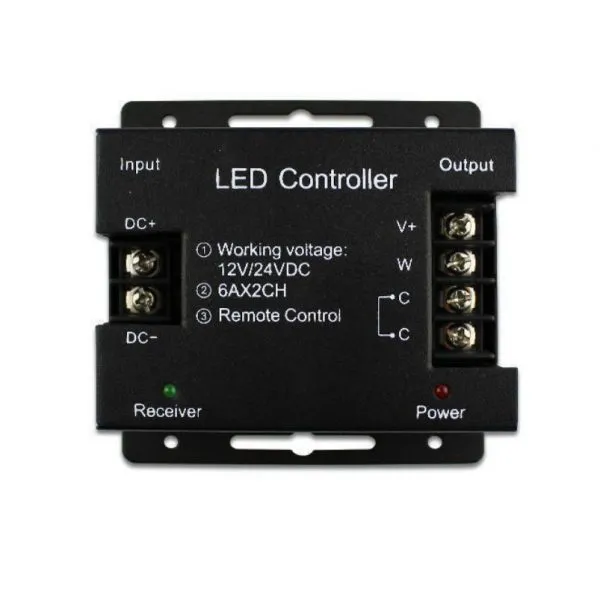

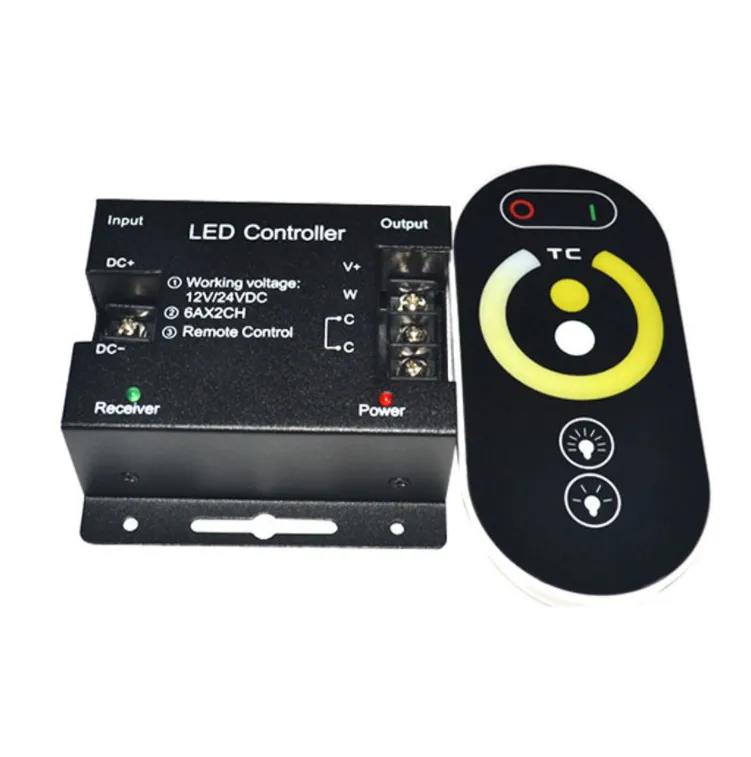

RF Dual Color Temperature Dimmer and Color Changing Controller LED Strip Light

Product Description:
The wireless touch dimming color temperature controller adopts the latest capacitive touch technology and unique appearance design. It realizes dimming control in a simple, intuitive and long-distance way. way. This product has the advantages of convenient wiring, stable radio frequency transmission, low interference, and long life. This controller has a powerful short-circuit protection function. After a short circuit, the indicator light will flash at a fixed frequency, prompting the user that the output of the controller is short-circuited. The controller also has the function of automatic recovery after short-circuit protection, and the user-friendly settings allow users to experience a different feeling easily.

Description
● Working temperature: -20-60℃
● Power supply voltage: 12V~24V
● Output: three CMOS open-drain outputs (two C channel signals are the same)
● Connection method: common anode
● Dimensions: L83×W79×H33 mm
● Packing size: L205×W134×H47mm
● Net weight: 227g
● Gross weight: 379g
● Static power consumption: <1W
● Output current:
● Output power: 12V:<144W, 24V:<288W

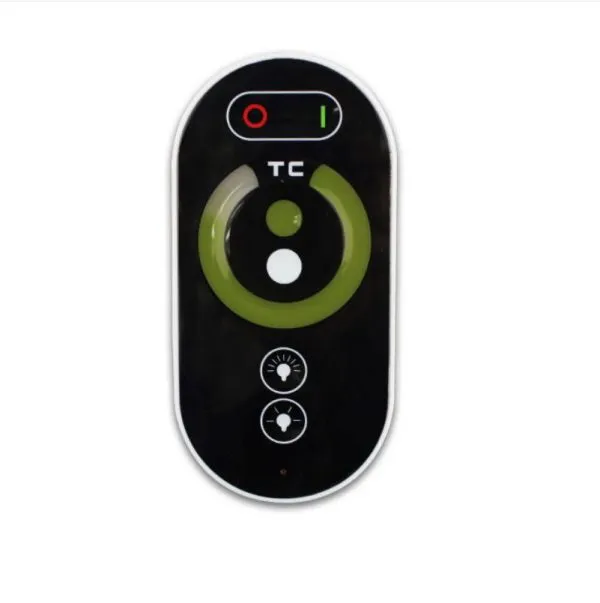

remote control
●Working temperature: -30℃~+60℃
●Power supply mode: AAA*3 batteries
●Power supply voltage: 3V
●Standby power consumption: <0.09mW
●Remote control distance: >20 meters
